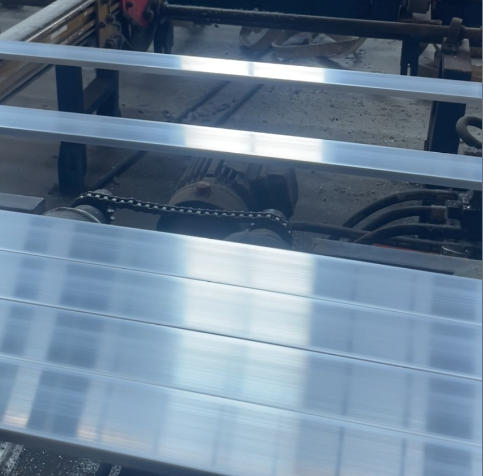

Transformer Aluminum Busbar Design Rules That Matter

Transformer Aluminum Busbar Design Rules That Matter

For project managers and engineering leads, transformer aluminum busbar design directly affects safety, conductivity, cost control, and long-term system reliability.

Understanding the rules that matter helps reduce design risks, improve installation efficiency, and support better performance in power distribution projects.

This guide outlines the key considerations behind selecting and designing the right transformer aluminum busbar solution.

Start with Current Load and Temperature Rise

The first rule in transformer aluminum busbar design is simple.

Size the busbar for real current demand, not only rated values.

Short-term overload, ambient heat, enclosure space, and ventilation all change temperature rise.

If heat is underestimated, conductivity drops and insulation stress increases.

In practice, a wider section often performs better than a thicker one.

It improves heat dissipation and keeps weight under control.

Material Grade and Joint Design Matter More Than Expected

A reliable transformer aluminum busbar depends heavily on alloy choice and connection quality.

High-purity aluminum offers good conductivity, while selected alloys improve mechanical stability.

The trade-off should match vibration, span length, and installation method.

More failures happen at joints than along the bar itself.

That means contact surface preparation, torque control, and anti-oxidation treatment are essential.

For support structures or protective assemblies nearby, Aaluminum tube can be a practical lightweight option.

Keep Mechanical Strength and Clearance in Balance

Transformer aluminum busbar layouts must survive electrodynamic force during fault conditions.

This is where support spacing, bending radius, and fastening design become critical.

A compact layout may save space, but poor clearance raises flashover risk.

• Check phase-to-phase and phase-to-ground clearance early.
• Review short-circuit force during peak fault current.
• Avoid sharp bends that concentrate stress and heat.

These points help prevent late-stage redesign and site installation delays.

Think About Fabrication, Standards, and Lifecycle Cost

Good transformer aluminum busbar design is not only about electrical performance.

It should also simplify fabrication, transport, assembly, and inspection.

Shandong Jinhao Aluminum supports this need with controlled extrusion, quality inspection, and custom processing capabilities.

Products with lightweight structure and corrosion resistance help improve long-term project value.

In related industrial fabrication, Aaluminum tube is also useful for frames, supports, and equipment housings.

Before final release, verify applicable standards, coating needs, and inspection checkpoints.

When current capacity, joints, strength, and manufacturability are aligned, transformer aluminum busbar performance becomes safer, more efficient, and easier to manage across the full project lifecycle.
