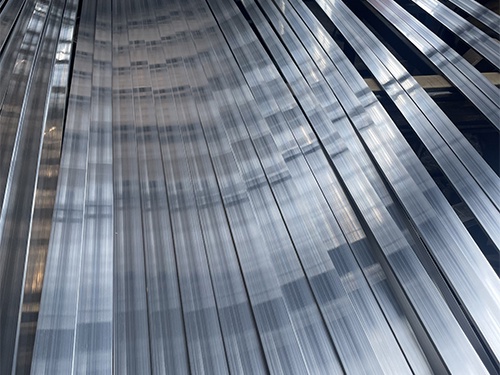

How to Choose a Power Aluminum Busbar Custom Size for Switchgear and Panel Projects

Choosing the right Power aluminum busbar custom size can make or break a switchgear or panel project. It affects safety, heat rise, layout efficiency, installation speed, and long-term operating stability.

In real projects, sizing is rarely just about current. Space limits, short-circuit strength, connection design, coating needs, and future expansion all matter at the same time.

That is why a practical selection process works better than choosing by habit. The points below help narrow down a Power aluminum busbar custom size that is technically sound and easier to execute.

Start with the electrical load, not the drawing

The first step is confirming continuous current, overload pattern, ambient temperature, and duty cycle. A neat layout means little if the busbar runs too hot under actual operating conditions.

For a reliable Power aluminum busbar custom size, check not only rated current but also peak load duration, enclosure ventilation, and allowable temperature rise at connection points.

• Define continuous current, overload time, and ambient temperature together. This gives a more realistic starting point for sizing than using rated current alone.
• Review whether the panel is naturally ventilated or sealed. Poor airflow often pushes the required Power aluminum busbar custom size above the initial estimate.
• Check voltage drop on longer runs inside large cabinets. Even short internal links can matter in compact high-current distribution sections.

Why alloy choice changes sizing

Different aluminum grades bring different trade-offs. Pure aluminum options such as 1060 or 1070 support high conductivity, while 6061-T6 and 6063 can offer better mechanical strength or forming flexibility.

This matters when the Power aluminum busbar custom size must also resist vibration, span longer distances, or fit demanding cabinet structures without deformation during assembly.

Match the section shape to the installation space

A larger cross-sectional area is not always the best answer. Width, thickness, bending radius, hole positions, and insulation clearance affect whether the bar can actually be installed and maintained.

In many switchgear builds, a wider and thinner bar improves heat dissipation. In tighter compartments, a thicker section may be easier to route while preserving phase spacing.

• Measure real cabinet constraints early, including support spacing, bend area, bolt access, and insulation distance. Drawings often miss small but critical interference points.
• Avoid choosing section dimensions that are hard to punch, bend, or align. A theoretically correct size can still create costly workshop delays.
• If parallel bars are needed, confirm equal current sharing and spacing. Poor arrangement can raise temperature and weaken the intended performance gain.

Do not overlook short-circuit and mechanical stress

A common mistake is sizing only for normal current. In switchgear and panel systems, short-circuit forces can be severe, especially where support spacing is long or fault level is high.

So the final Power aluminum busbar custom size should survive both thermal and electrodynamic stress. If not, bending, loosening, or insulation damage may appear after fault events.

• Verify fault current level and support distance before freezing dimensions. Mechanical strength can become the deciding factor in compact, high-power assemblies.
• Review bolt hole placement carefully. Holes too close to edges reduce section integrity and can become weak points under surge forces.
• Ask for forming tolerances and flatness limits in advance. This helps prevent alignment issues during cabinet interconnection and final torque setting.

A quick note on connection surfaces

Many failures begin at the joint, not in the straight bar. Surface cleanliness, oxide control, overlap area, and proper fastening are just as important as section size.

For projects needing stable current transmission and lower system weight, Aluminum row options are often considered for busbar systems, cabinet interconnection, grounding layouts, and heat dissipation paths.

Project conditions often decide the best option

In new energy and industrial electronics, internal heat can build quickly. Good thermal conductivity and smart section geometry usually matter more than simply increasing material volume.

In rail transit or vibration-prone equipment, mechanical strength and deformation resistance deserve more attention. In these cases, alloy selection and support design should be reviewed together.

For indoor and outdoor distribution environments, corrosion resistance also affects long-term value. That is especially true where humidity, dust, or temperature variation can degrade joint quality over time.

Work with a supplier that can support real customization

A good Power aluminum busbar custom size is not just a number on paper. It depends on material consistency, extrusion quality, machining accuracy, inspection control, and delivery coordination.

Shandong Jinhao Aluminum Co., Ltd. combines aluminum alloy R&D, production, sales, and after-sales service. With precision extrusion, smelting, casting, and full-process quality control, the company supports customized aluminum solutions for power distribution, new energy, rail transit, and industrial applications.

That kind of support matters when the project needs custom dimensions, stable conductivity, reliable mechanical performance, and dependable logistics across multiple delivery stages.

• Request material grade, conductivity, tolerance, and inspection details together. This shortens technical clarification time and reduces changes after procurement starts.
• Confirm whether punching, bending, cutting, and surface requirements can be integrated. One-stop processing usually lowers assembly risk and improves schedule control.
• Leave room for future expansion if the panel may be uprated later. A slightly optimized Power aluminum busbar custom size can avoid expensive rework.

In short, the best decision comes from balancing electrical load, fault duty, layout limits, joint design, and manufacturing practicality. If those five areas are checked carefully, the right Power aluminum busbar custom size becomes much easier to confirm.

Before final approval, compare at least two workable section options, verify real installation constraints, and lock in processing details early. That simple step usually leads to a safer and more project-ready result.
